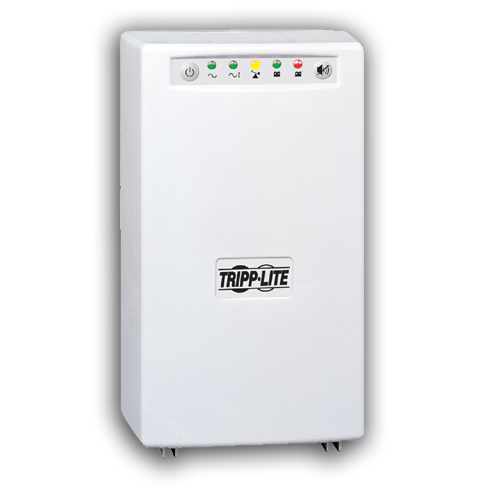

H σειρά της TrippLite SMXHG είναι πλήρως συμβατή με το κανονιστικό πρότυπο UL 60601-1 και ιδανική για ιατρικές εφαρμογές. Διαθέτει ενσωματωμένο μετασχηματιστή απομόνωσης με φίλτρο Faraday ώστε να ελαχιστοποιείται ο θόρυβος και οι παρεμβολές.
OUTPUT | ||||
Output Volt Amp Capacity (VA) | 350 | 700 | 1000 | |
Output Watt Capacity (Watts) | 225 | 450 | 750 | |
Nominal Output Voltage(s) Supported | 220V; 230V; 240V | |||
Nominal Voltage Details | 230V nominal output in battery mode | |||
Frequency Compatibility | 50 / 60 Hz | |||
Output Voltage Regulation (Line Mode) | -18%, +8% | |||
Output Receptacles | (6) C13 | |||
Included Output Power Cables | Includes 2 C13 to C14 output power cables | |||
Output AC Waveform (AC Mode) | Sine wave | |||
INPUT | ||||
Rated input current (Maximum Load) | 1,8A | 3,6A | 5A | |
Nominal Input Voltage(s) Supported | 230V AC | |||
BATTERY | ||||
Half Load Runtime (min.) | 37 | 36 | 27,5 | |
DC System Voltage (VDC) | 12 | 36 | 36 | |
Battery Replacement Description | Hot-swappable, user replaceable batteries | |||
GENERAL CHARACTERISTICS | ||||
Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 155 to 274VAC | |||
Overvoltage Correction | Input voltages between 245 and 274 are reduced by 9% | |||
Undervoltage Correction | Input voltages between 183 and 199 are boosted by 10% | |||
LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status | |||
Audible Alarm | Audible alarm indicates power-failure and low-battery conditions | |||
UPS AC Suppression Joule Rating | 340 | |||
EMI / RFI AC Noise Suppression | Yes | |||
PHYSICAL | ||||
UPS Power Module Dimensions (hwd, cm) | 26,9 x 13,1 x 18,8 | 32,5 x 19 x 22,9 | 32,5 x 19 x 23,1 | |
UPS Power Module Weight (kg) | 11,5 | 19,1 | 22 | |
ENVIRONMENTAL | ||||
Operating Temperature Range | 0 to +40 degrees Celsius | |||
Storage Temperature Range | -15 to +50 degrees Celsius | |||
Relative Humidity | 0 to 95%, non-condensing | |||
AC Mode Efficiency Rating (100% Load) | 97% | |||
COMMUNICATIONS | ||||
Communications Interface | USB (HID enabled) | |||
WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications | |||
WARRANTY | 2 YEARS | |||
Λογισμικό διαχείρισης PowerAlert με κύριες λειτουργίες:
