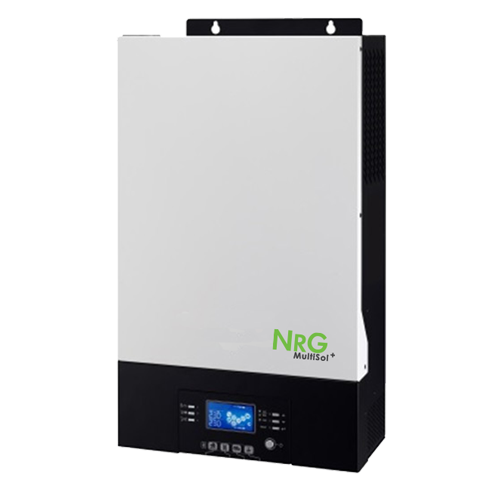

NRG MultiSol plus
Περιγραφή
Οι Solar Off Grid Inverters NRG MultiSol plus έχουν μηδενικό χρόνο μεταγωγής ώστε να υποστηρίζουν κρίσιμα φορτία όπως servers & ATM.
Οι Solar Off Grid Inverters NRG MultiSol plus έχουν μηδενικό χρόνο μεταγωγής ώστε να υποστηρίζουν κρίσιμα φορτία όπως servers & ATM.
| Ισχύς | 5000 VA | |
| 5000 W | ||
| Parallel capability up to 9 units | ||
| Είσοδος | |||
|---|---|---|---|
| Voltage | 230 V | ||
| Voltage Range | 110-280VAC | ||
| Rated frequency | 50 / 60 Hz (auto sensing) | ||
| Έξοδος | |||
|---|---|---|---|
| AC Voltage Regulation | 230 VAC +/-5% | ||
| Output THDv | <3% for linear load, <8% for non-linear load | ||
| Surge Protection | 10000VA for 5 sec | ||
| Wave form | Pure Sine wave | ||
| Transfer Time | 0 ms | ||
| Efficiency (peak) | 90% at battery mode, 93% at line mode | ||
| Μπαταρίες | |||
|---|---|---|---|
| Battery Voltage | 48VDC | ||
| Floating Charge Voltage | 54VDC | ||
| Overcharge Protection | 66VDC | ||
| Solar Charger & AC Charger | |||
|---|---|---|---|
| Solar charger type | MPPT | ||
| Maximum PV Array Open Circuit Voltage | 145VDC | ||
| Maximum PV Array Power | 4000W | ||
| MPP Range @Operating Voltage | 60-115VDC | ||
| Maximum Solar Charge Current | 80A | ||
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 140A | ||
| Διαστάσεις | |||
|---|---|---|---|
| Dimensions D x W x H | 140 x 303 x 525 mm | ||
| Weight | 13,5 kg | ||
| Περιβάλλον | |||
|---|---|---|---|
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating temperature | 0C to 55C | ||
| Storage temperature | -15C to 60C | ||
| Communmication Interface | USB/RS232/RS485/Bluetooth/Dry contact | ||
