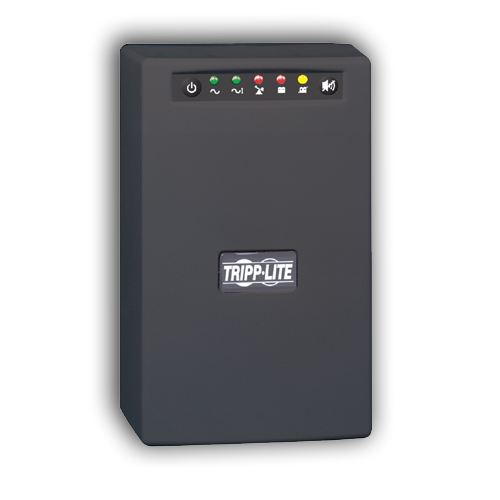

Line interactive UPS, OMNIVS protects the valuable equipment from data loss, failure time and possible damages due to voltage outage, voltage variations or surges. Ideal for various applications such as PCs and peripherals (hubs, routers, concentrators, small telephone centers and audio-visual equipment).
| OUTPUT | |
| Output Volt Amp Capacity (VA) | 1500 |
| Output Watt Capacity (Watts) | 940 |
| Nominal Output Voltage(s) Supported | 220V; 230V; 240V |
| Nominal Voltage Details | 230V nominal output in battery mode |
| Frequency Compatibility | 50 / 60 Hz |
| Output Voltage Regulation (Line Mode) | +-18%, +8% |
| Output Voltage Regulation (Battery Mode) | +/- 5% |

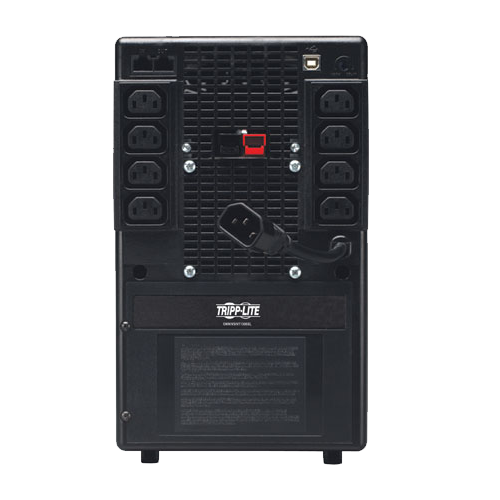

| Output Receptacles | (8) C13 |
| Included Output Power Cables | Includes 2 C13 to C14 output power cables |
| Output AC Waveform (AC Mode) | Sine wave |
| INPUT | |
| Rated input current (Maximum Load) | 5A |
| Nominal Input Voltage(s) Supported | 230V AC |
| BATTERY | |
| Half Load Runtime (min.) | 13 min. |
| DC System Voltage (VDC) | 24 |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| GENERAL CHARACTERISTICS | |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC |
| Overvoltage Correction | Input voltages between 245 and 282 are reduced by 12% |
| Undervoltage Correction | Input voltages between 177 and 199 are boosted by 14% |

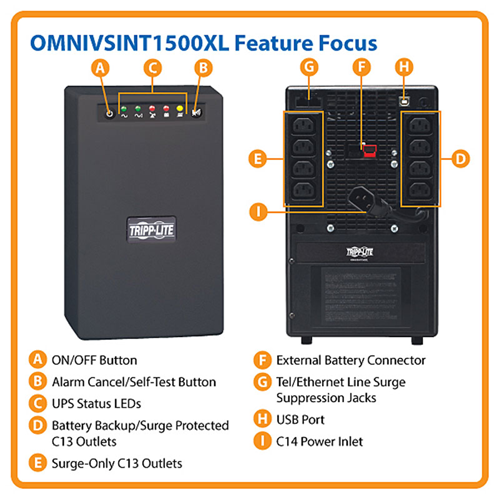

| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
| UPS AC Suppression Joule Rating | 340 |
| EMI / RFI AC Noise Suppression | Yes |
| PHYSICAL | |
| UPS Power Module Dimensions (hwd, cm) | 29,8 x 18,4 x 19 |
| UPS Power Module Weight (kg) | 15,9 kg |
| ENVIRONMENTAL | |
| Operating Temperature Range | 0 to +40 degrees Celsius |
| Storage Temperature Range | -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
| AC Mode Efficiency Rating (100% Load) | 97% |
| COMMUNICATIONS | |
| Communications Interface | USB (HID enabled) |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| WARRANTY | 2 YEARS |
PowerAlert software. Main features:
| WATCHDOG SOFTWARE | ||
|---|---|---|
 |
||
| Ensures 100% availability of remote, unattended systems by monitoring and restarting locked-up or poorly performing services Eliminates costly troubleshooting calls. The UPS System will safeguard connected equipment against downtime and damage due to blackouts, surges and other power problems. Another benefit of deploying a UPS System with WatchDog Software is the ability to reboot a completely locked system. WatchDog Software automatically directs PowerAlert Software (included FREE on the WatchDog Software CD-ROM) to reboot the computer and connected equipment by powering down and restarting the UPS System. |
| ENVIROSENSE | ||
|---|---|---|
| Power management tool with environmental sensor. The UPS can monitor the environmental temperature and humidity and moreover the contact / closure ports. Connection with the envirosense offers additional information for the ambient temperature and humidity. Requires installation of SNMP/ WEB card. | ||
| SNMP WEB CARD | ||
|---|---|---|
| Enhanced UPS Management and Control. Remotely monitor site electrical data, UPS self-test logs, alert logs and logged power events like blackouts, brownouts and overvoltages Reboot locked network equipment without disrupting power to other loads (when used with controllable outlets or remotely switchable outlets on select UPS systems) Enables the configuration of a networked UPS to be copied and transferred to multiple devices Monitor temperature and humidity, as well as alarm, security and telecom devices (with optional ENVIROSENSE module, sold separately) |
||
