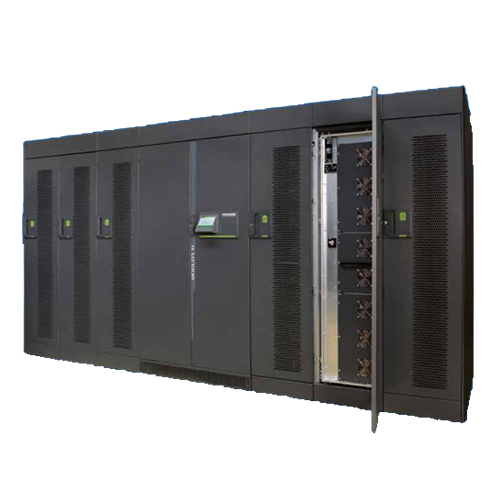

SOCOMEC MODULYS XL 200KVA-4800KVA

The solution for

• Data centres
• Buildings
• Industry

Advantages

• UPS configurations based on 3 standard bricks for a simplified installation process.
• Repeatable and standardised assets to meet different configuration and architectural requirements.
• An adjustable number of empty power slots to match different scalability and redundancy needs.
• Complete UPS customisation without modifying the core standardised bricks.
• Quality, simplicity of construction and ease of operation.

5-minute plug-in

• Power module addition or removal in only 5 minutes by one person.
• Simple and safe power module plug-in: no power or communication bus cabling required.
• Load fully protected in double conversion mode during the power extension or module swap.
• Hot-scale and swap process in incremental steps of 200 kW to reduce time and optimise costs.
• Automatic power module self-configuration and testing before connection.
• Firmware auto-alignment.
• No installation rework when a new capacity is required.
• Off-powered connection of the power module to prevent electrical arcing upon plug-in and plug-out.

Safe and easy deployment

• Specifically engineered to eliminate unexpected installation errors.
• Easy power slot positioning and perfect alignment including on uneven floors.
• Power slots with pre-engineered built-in bus bars for quick, easy and clean interconnections.
• A full frontal access installation so the UPS can be installed against a wall.
• The power slots set up during the installation stage are ready for future hot plug-in power modules.
• Safe and easy power module handling.
• Full system heat-run test capability during commissioning without the need for an external load bench.

Concurrent and risk-free maintenance

• Concurrent maintenance of all components.
• Safe power module maintenance – outside of the running system.
• Both the power modules and the static bypass can be maintained while the load remains fully protected in double conversion mode.
• No in-situ maintenance, service or repair that may jeopardise the running system.
• Fully extractable power modules and subassemblies and complete access to all components, reducing the MTTR.
• Built-in means to perform an exhaustive pre-test after the module’s maintenance.

Flexible UPS architecture

• Hot-scalable power capability.
• Adjustable redundancy level.
• Common or separated rectifier and bypass mains.
• Compatible with different energy storage technologies (e.g. Li-Ion, Ni-Cd…).

Standard electrical features

• Separated inputs (rectifier, bypass).
• Top or bottom cable entry.
• Backfeed protection: detection circuit.
• Redundant bypass cooling.
• Distributed batteries (1 per module).
• Battery temperature sensor.
• Module heat-run test(1).
• Full system heat run test(1).
• 63 A three-phase plug.
