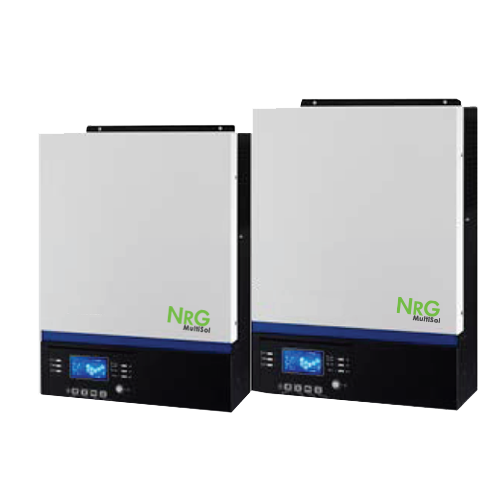

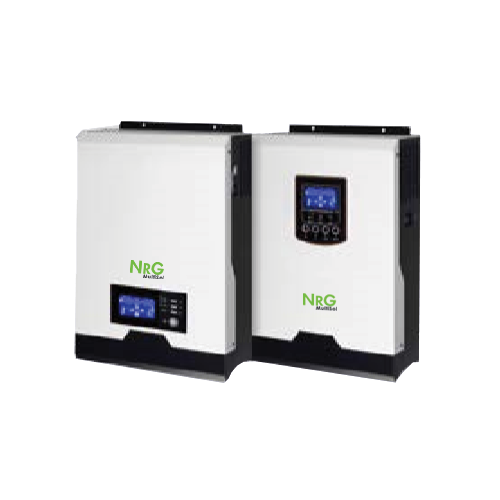

Οι Solar Off Grid Inverters NRG MultiSol με γκάμα 1-5kVA & pf=1 διαθέτουν λειτουργία cold start και προστασία από υπερφορτώσεις και βραχυκυκλώματα.

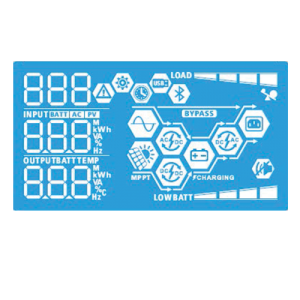

LCD Display panel |

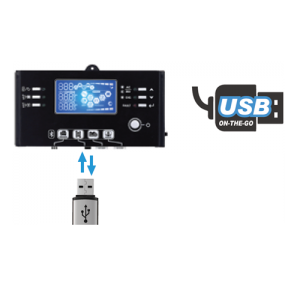

USB On the Go function |

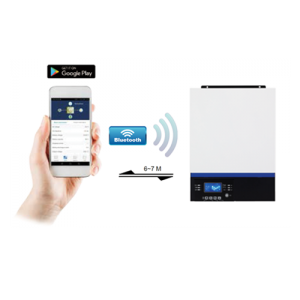

Integrated Bluetooth interface |
|---|---|---|
 |
 |
 |
| Ισχύς | 1000 VA | 3000 VA | 5000 VA |
| 1000 W | 3000 W | 5000 W | |
| Είσοδος | |||
|---|---|---|---|
| Voltage | 230 V | ||
| Selectable Voltage Range | 170-280 VAC (for PCs) / 90-280 VAC for home appliances | ||
| Rated frequency | 50 / 60 Hz (auto sensing) | ||
| Έξοδος | |||
|---|---|---|---|
| Automatic Voltage Regulation (AVR) | 230 VAC +/-5% | ||
| Rated voltage | 230 V ±10% | ||
| Surge Protection | 2000VA | 6000VA | 10000VA |
| Wave form | Pure Sine wave | ||
| Transfer Time | 10ms for PCs / 20ms for home appliances | ||
| Efficiency (peak) | 90%-93% | ||
| Μπαταρίες | |||
|---|---|---|---|
| Battery Voltage | 12VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13,5VDC | 27VDC | 54VDC |
| Overcharge Protection | 16VDC | 33VDC | 63VDC |
| Solar Charger & AC Charger | |||
|---|---|---|---|
| Solar charger type | MPPT | ||
| Maximum PV Array Open Circuit Voltage | 102VDC | 102VDC | 500VDC |
| Maximum PV Array Power | 500W | 1000W | 5000W |
| MPP Range @Operating Voltage | 17-80VDC | 30-80VDC | 120-450VDC |
| Maximum Solar Charge Current | 40A | 40A | 80A |
| Maximum AC Charge Current | 20A | 25A | 60A |
| Maximum Charge Current | 60A | 60A | 80A |
| Διαστάσεις | |||
|---|---|---|---|
| Dimensions D x W x H | 88 x 225 x 320 mm | 100 x 285 x 334 mm | 115 x 300 x 400 mm |
| Weight | 4,4 kg | 6,5 kg | 10 kg |
| Περιβάλλον | |||
|---|---|---|---|
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating temperature | -10C to 50C | ||
| Storage temperature | -15C to 60C | ||
